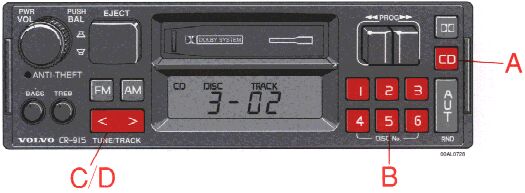

A - CD mode selector
Press CD to activate the CD mode. The disc/track last listened to will continue to play. If the CD-changer cartridge * is empty, "---" will be displayed. If a selected disc position is empty, the disc number and "---" will be automatically selected.
* The functions pertaining to the CD-changer are only applicable if the unit has been connected to the Volvo CD-changer which is sold separately as an accessory, or on certain models, standard on the car. IF no CD-changer is connected to the unit "CD E-EE" will be displayed if you happen to choose CD mode. |
B - Disc number selector
Press one of the preset buttons to select desired the disc number. The selected disc number and track number will be displayed.
C - Track number selector
Press the tuning button for less than 0.9 seconds to select the track number desired chosen track number will be displayed
D - Music search
Press the tuning button for more than 0.9 seconds to search within the track. During searching you can hear the music being played at faster speed. The elapsed time of the current is shown in the display.

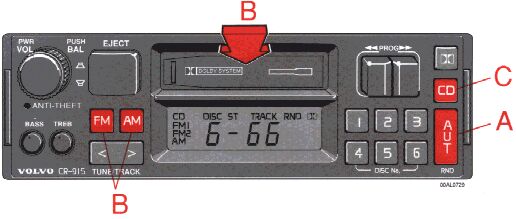

A - Random choice
Press AUT to activate random mode. From a disc chosen at random, 4 tracks will be played (also chosen at random). A new disc will then be played in the same way. "RND" will be displayed when this function is engaged.
B - To re-enter another mode
If you press the FM or AM button, or insert a tape, the mode you choose will be activated.
C - Elapsed time indicator
By pressing the CD button the elapsed time of the current track will be indicated in the display.
CD changer
The CD changer, which is available separately, is loaded with a cartridge containing 6 discs. Extra cartridges are available at your Volvo dealer.
Insert the discs into the cartridge, label (A) up.
Insert the cartridge and close the cover.
Eject the cartridge by pressing the eject button (B).
Remove the discs by depressing the lock tabs (C).
Operating tips :
The FM waves do not follow the earth's surface nor do they bounce off the atmosphere. For this reason their range is limited.
The AM waves follow the earth's surface and reflect against the atmosphere, giving them a wide range.
Because of the limited range of the FM senders and the fact that these waves are very reflective, this problem usually occurs with FM reception. If the sender is blocked by buildings or mountains, static can result.
The reason why FM but not AM is audible is covered parking areas, under bridges, etc., is that FM signals reflect against solid objects such as buildings. Because these waves are very reflective, static can result. This static is the result of the reflected signal and the direct signal reaching your antenna at slightly different times causing a cancellation of all signals. This problem occurs largely in built-up areas.
pg. 1:28 Cross modulation, FM - reasons for distortion, AM - reasons for distortion |
Cross modulation
If you listen to a weak station in the vicinity of a stronger one, both stations may be received simultaneously.
FM is affected by the electrical systems of nearby vehicles, especially those without suppression. The distortion increases if the station is weak or poorly set.
The FM reception is not as sensitive to electrical disturbances as AM.
AM reception is sensitive to electrical disturbances such as power lines, lighting, etc.
pg. 1:29 Radio |
FM stereo reception
Stereo reception places very high demands on the signal quality which means the type of distortions previously mentioned become even more obvious. The signal strength needs to be stronger for good stereo reception and this limits the effective range of the sender.
We hope that this information proves to be useful and provides you with a better understanding of the problems related to car radio reception.
Reception conditions are not always optimum and this is, of course, beyond our control. However, we have endeavored to make the Volvo Audio System of a quality that will enable you to enjoy the best possible reception no matter what the reception conditions may be.
Radio antenna (sedans)
NOTE:
Always lower the antenna (by switching off the radio) when using an automatic car wash or entering a garage.
The antenna should be cleaned at least every 10,000 miles (16,000 km) or more frequently if needed. Use WD40 for cleaning.
Spray the antenna with WD40 and wipe it clean and dry with a rag. Spray it again. Lower and raise the antenna. Wipe it clean and dry again. Lower and raise the antenna 4-6 times. Make sure it is dry and free from dirt or lubricating oil.
Radio antenna (wagons)
The radio antenna is built into the driver side window of the cargo area. This antenna also has a factory installed antenna booster.
NOTE: The antenna will not work without this booster.
Place objects in the cargo area so that the antenna wires on the inside of the window will not be damaged. When cleaning the window be careful that the wires are not scratched by rings, etc. If they are damaged, radio reception will be impaired.
pg. 1:30 Technical specifications |
Cleaning of magnetic head
In order to maintain the best possible sound quality and to ensure troublefree operation, Volvo recommends the use of Volvo Cleaning Cassette (available from your Volvo dealer) at regular intervals (10 to 15 hrs).
Cassettes/Compact Discs
are the trademarks of Dolby Laboratories Licensing Corporation.
