Replacing bulbs
The method for replacement of bulbs in the various lighting units is shown on the following pages. Make sure when installing bulbs, that the guide pin on the socket fits into its corresponding recess.
When installing Halogen bulbs, do not touch the glass with your fingers because grease, oil or any other impurities can be carbonized onto the bulb and damage the reflector.
Use bulbs of correct type and voltage. Failure to do so could cause the bulb failure warning light to activate.
NOTE: Turn the ignition and the light switch off before replacing any bulbs.
Headlights (high/low beams)

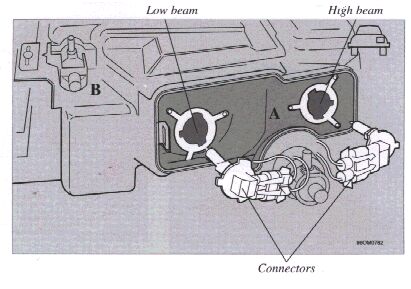

1. Press the protruding tabs on the plastic cover and pull out towards the fender.
2. Turn the bulb and connector 1/4 turn counter-clockwise and remove.
3. Remove the connector from the bulb.
4. Press a new bulb into the connector without touching the bulb itself.
5. Reinsert the bulb into the headlight housing and turn 1/4 turn clockwise until the unit seats properly.
6. Reinstall the plastic cover.
Bulb
Power
US Bulb No.
High beam
70W
HB3/9005
Low beam
60W
HB4/9006
Headlight adjustment
Th height of the headlight beams can be adjusted according to vehicle load. The headlights should be re-aimed if heavy loads are carried in the trunk/cargo area or rear seat, or when towing a trailer.
To adjust the headlights:
Park the car on a level surface and open the hood.
The headlights are equipped with a level which can be seen by looking through the clear "window" on the top of the headlight lens.
Turn the height adjustment knob (A) until the bubble in the level aligns with within the marking lines on the level.
Lateral headlight adjustment (B) should only be carried out by an authorized Volvo retailer. This setting should be preset to "0".
pg.6:6 Replacing bulbs |
Turn signal/parking light/side marker light
1 To remove, turn the lamp holder 1/4 turn counter-clockwise.
2 Remove the bulb from the holder by pressing it down in the holder and turning it 1/4 turn counter-clockwise.
3 Insert a new bulb into the holder and reinstall the unit in the reverse order.
Power CP(W)
Socket
US Bulb No.
2412.2(21/5)
BAY 15d
1157NA
NOTE: It may be necessary to remove the washer fluid reservoir fill tube in order to gain access to the bulb holder.
Fog lamps
1. Release the cover with a Phillips screwdriver.
2. Remove the spring clips
3. Withdraw the bulb and connecting wire (one unit).
4. Connect the wire from the new bulb.
5. Insert the new bulb in the holder and press the spring clips into place.
6. Screw the cover into place.
Bulb
Power
US Bulb No.
H3
55W
-
pg. 6:7 Replacing bulbs, Sedans |
Replacing tail light bulbs (sedan models)
All tail lamp bulbs are replaced from inside of trunk. To avoid confusion, replace the bulbs one at a time.
Bulbs
Power
Socket
US Bulb No
CP(W)
1,4 Tail light
4 (5)
BA 15s
67
2 Rear turn signal
(21)
BAU 15s
-
3 Brake light
32 (21)
BA 15s
1156
5 Back-up light
32 (21)
BA 15s
1156
6 Rear foglamp*
32 (21)
BA 15s
1156
* Left (driver's) side only
pg. 6:8 Replacing bulbs |
Replacing tail light bulbs (wagon models)
One of the guide lugs on the bulb holder is slightly wider than the other two and, thus, this lug fits into the widest recess only.
Two types of bulbs are in use
The guide lugs on the twin-pole bulb are at different heights, and it is only possible to fit these bulbs in one way. Try at first to turn the bulb gently. Do not use force. If this does not work, take out the bulb and turn it half a turn and try again.
Light
Power CP(W)
Socket
US Bulb No.
1 Fog light*
32(21)
BA 15s
1156
2 Back-up lights
32(21)
BA 15s
1156
3 Turn signals
(21)
BAU 15s
-
4 Brake light and tail light
32/3(21/5)
BAZ 15d
1157
* One light only, on driver's side
pg. 6:9 Replacing bulbs |
Trunk light (sedan models)
Courtesy light (wagon models)
Depress the catch with a screwdriver and remove the light assembly. Lift it out to remove. Replace the bulb.
Bulb
Power
Socket
Trunk light
10 W
SV 8.5
WARNING! When using a screwdriver to pry plastic components, take care to avoid scratching or breakage. Use eye protection whenever possible. |
License plate light (sedan models)

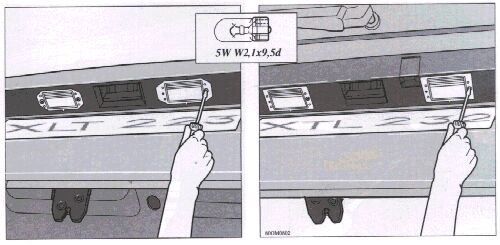

Turn off the lights. Remove both screws and insert the screwdriver and turn it carefully (see illustration) until the glass comes loose. Replace the bulb and reinstall the glass.
Bulb
Power
Socket
License plate light
5W
W 2.1x9.5d
License plate light (wagon models)
Remove the screws with a screwdriver. Remove lamp housing. Depress the bulb and rotate it counter-clockwise. Remove the bulb. Install a new bulb and re-install lamp housing.
Bulb
Power
Socket
License plate light
4 W
BA9s
pg. 6:10 Replacing bulbs |
High-mounted brake light
To remove: (Sedans)
Turn off ignition.
Depress catch with a screwdriver. Pull cover upward to remove it.
To remove: (Wagons)
Turn off ignition.
Grasp the cover with both hands and pull it towards you.
Bulb
Power CP(W)
Socket
US Bulb No.
High-mounted brake light
32(21)
BA15s
1156
Depress catches and fit new bulb.
To fit:
Fit the reflector and check that the light works.
4-door models
Press the cover into position, noting the position of the alignment pin at the top.
Wagons
Align the catches and press the cover into position.
pg. 6:11 Replacing bulbs |
Interior light and reading lights
Take hold of the front section of the light as shown and pull straight down.
Press lens out from inside and replace bulb. Check operation before reinstalling lamp housing.
NOTE:
The wiring should not be pinched when the lamp housing is reinstalled.
Bulb
Power
Socket
Interior light
10 W
SV 8.5
Reading light
5 W
W 2.1x9.5d
The bulb in the adjustable reading lamps can be changed as follows: insert a screwdriver as shown and twist off the lamp. Withdraw the bulb and fit a new one.
pg. 6:12 Replacing bulbs |
Door warning lamps
All doors are equipped with red warning lamps. To replace a bulb, insert a screwdriver as shown in picture and gently turn it to remove the lens. Withdraw the bulb, replace it and re-insert the lens.
Vanity mirror
Insert a screwdriver and turn it to remove the lens. Replace the bulb and press the lens back into place.
Door step courtesy lights
