| pg. 6:5 Replacing bulbs |
Replacing bulbs
The method for replacement of bulbs in the various lighting units is shown on the following pages. Make sure when installing bulbs, that the guide pin on the socket fits into its corresponding recess.
When installing Halogen bulbs, do not touch the glass with your fingers because grease, oil or any other impurities can be carbonized onto the bulb and damage the reflector.
Use bulbs of correct type and voltage. Failure to do so could cause the bulb failure warning light to activate.
| NOTE: Turn the ignition and the light switch off before replacing any bulbs. |

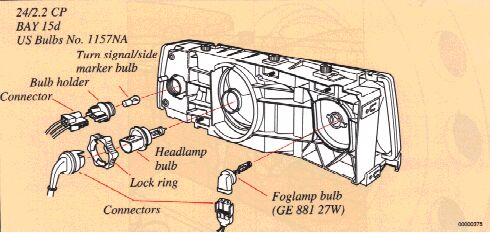

Headlamps
1 Pull the connector out.
2 Loosen the ring by turning it counter-clockwise.
3 Pull the bulb straight out.
4 Replace the bulb and reinstall the unit in the reverse order.
Bulb
Power
US Bulb No.
Headlamp
(45/65)
HB1/9004
Turn signal/parking light/side marker light
1 To remove, turn the lamp holder 1/4 turn counter-clockwise.
2 Press the bulb in and turn it 1/4 turn counter-clockwise.
3 Replace the bulb and reinstall the unit in the reverse order.
Power CP (W)
Socket
US Bulb No.
24/2.2(21/5)
BAY 15d
1157 NA
| pg. 6:6 Replacing bulbs |
Access to the bulbs is obtained from the engine compartment. Switch off the lights and ignition key.
| Note: It may be necessary to remove the washer fluid reservoir fill tube in order to gain access to the bulb holder. |
Fog lamps
1 Turn the lamp holder 1/4 turn counter-clockwise.
2 Remove the bulb from the connector by pushing the catches to the sides.
3 Replace the bulb and the holder.
Bulb
Power
US Bulb No.
Foglamp
(27W)
GE881
| pg. 6:7 Replacing bulbs, Sedans |
Replacing tail light bulbs (sedan models)
All tail lamp bulbs are replaced from inside of trunk. To avoid confusion, replace the bulbs one at a time.
1 Unscrew and remove tail lamp inside cover. Note that inside cover is hooked at the lower edge.
2 Remove plastic screw A and remove bulb holder and bulb (one unit).
3 Depress bulb in bulb holder, turn it slightly counterclockwise, and remove it.
4 Install a new bulb. Install bulb holder in tail lamp.
5 Check that bulb lights. Replace tail lamp inside cover.
Bulbs
Power
Socket
US Bulb No
CP(W)
1,4 Tail light
4 (5)
BA 15s
67
2 Rear turn signal
32 (21)
BA 15s
1156
3 Brake light
32 (21)
BA 15s
1156
5 Back-up light
32 (21)
BA 15s
1156
6 Rear foglamp*
32 (21)
BA 15s
1156
* Left (driver's) side only
| pg. 6:8 Replacing bulbs |
Replacing tail light bulbs (wagon models)
One of the guide lugs on the bulb holder is slightly wider than the other two and, thus, this lug fits into the widest recess only.
Light
Power CP(W)
Socket
US Bulb No.
1 Fog light*
32(21)
BA15s
1156
2 Back-up lights
32(21)
BA15s
1156
3 Turn signals
32(21)
BA15s
1156
4 Brake light and tail light
32/3(21/5)
BAZ 15d
1157
Reflector
-
-
-
High-mounted stop lamp
32(21)
BA15s
1156
* Left side only
| pg. 6:9 Replacing bulbs |
Trunk light (sedan models)
Courtesy light (wagon models)
Depress the catch with a screwdriver and remove the light assembly. Lift it out to remove. Replace the bulb.
Bulb
Power
Socket
Trunk light
10 W
SV 8.5
WARNING! When using a screwdriver to pry plastic components, take care to avoid scratching or breakage. Use eye protection whenever possible. |
License plate light (sedan models)
Turn off the lights. Remove both screws and insert the screwdriver and turn it carefully (see illustration) until the glass comes loose. Replace the bulb and reinstall the glass.
Bulb
Power
Socket
License plate light
5W
W 2.1x9.5d
License plate light (wagon models)
Remove the screws with a screwdriver. Remove lamp housing. Depress the bulb and rotate it counter-clockwise. Remove the bulb. Install a new bulb and re-install lamp housing.
Bulb
Power
Socket
License plate light
4 W
BA9s
| pg. 6:10 Replacing bulbs |
High-mounted brake light
To remove: (Sedans)
Turn off ignition.
Depress catch with a screwdriver. Pull cover upward to remove it.
To remove: (Wagons)
Turn off ignition.
Grasp the cover with both hands and pull it towards you.
Bulb
Power CP(W)
Socket
US Bulb No.
High-mounted brake light
32(21)
BA15s
1156
Depress catches and fit new bulb.
To fit:
Fit the reflector and check that the light works.
4-door models
Press the cover into position, noting the position of the alignment pin at the top.
Wagons
Align the catches and press the cover into position.
| pg. 6:11 Replacing bulbs |
Interior light and reading lights
Take hold of the front section of the light as shown and pull straight down.
Press lens out from inside and replace bulb. Check operation before reinstalling lamp housing.
|
NOTE:
The wiring should not be pinched when the lamp housing is reinstalled. |
Bulb
Power
Socket
Interior light
10 W
SV 8.5
Reading light
5 W
W 2.1x9.5d
The bulb in the adjustable reading lamps can be changed as follows: insert a screwdriver as shown and twist off the lamp. Withdraw the bulb and fit a new one.
| pg. 6:12 Replacing bulbs, Fuses |
Door warning lamps
All doors are equipped with red warning lamps. To replace a bulb, insert a screwdriver as shown in picture and gently turn it to remove the lens. Withdraw the bulb, replace it and re-insert the lens.
Vanity mirror
Insert a screwdriver and turn it to remove the lens. Replace the bulb and press the lens back into place.
Fuse replacement
If an electrical component fails to function, it is likely that a fuse has blown due to an overloaded circuit. The fuse box is located on the far left side of the dashboard. Spare fuses and the fuse tool are located in an illuminated compartment in the fuse box. To gain access to the fuses, remove the cover. When replacing the cover, push in the front edge first and then press into place.
