POWER TRANSMISSION

Automatic transmission AW71

Reduction ratios:
1st gear 2.45:1
2nd gear 1.45:1
3rd gear 1:1
4th gear 0.69:1
Reverse 2.21:1

Rear axle: Reduction ratio
4.10:1 (940)
3.73:1 (940 Turbo)

Front suspension

McPherson-type spring and strut suspension. Shock absorbers housed in strut casing. Rack-and-pinion steering.

Safety-type steering column.

The alignment specifications apply to an unladen car, but include fuel, coolant, and spare wheel.
Toe-in, measured on the wheel rim: 2.3 mm +/- 1.0 mm
tire sides: 2.8 +/- 1.3 mm

ELECTRICAL SYSTEM

12 V, negative ground.
Voltage-controlled generator. Single-wire system with chassis and engine used as conductors.

Voltage 12 V
Battery, type Maintenance free
Capacity 520 A/100 min
Electrolyte, specific gravity 1.28
Recharge at 1.24

Generator, rated output 1350 W (940/GL)
1350W (Turbo)

max. current 100 A

The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of correctly. Your Volvo dealer can assist you in this matter.

The following bulbs may be obtained from your nearest Volvo dealer:

Lights, 12 V	US bulb No.	Power	Socket
Headlights	HB1/9004	65/45 W	-
Parking lights,front
turn signals, front	1157 N.A.	21/5 W/24/2.2 cp	BAY 15 d
turn signals, rear	1156	21W/32cp	BA 15s
Tail lights	2x67	5 W/4cp	BA 15s
Brake light	1156	21 W/32cp	BA 15s
Tail light/brake light *	1157	21/5W/32/3cp	BA 15d
High-mounted brake light	1156	21 W/32cp	BA 15s
Back-up lights	1156	21 W/32cp	BA 15s
Rear fog light	1156	21 W/32cp	BA 15s
Front fog lights	GE881	27 W	-

Bulbs	Power	Socket
License plate light	5 W	W 2.1 x 9.5 dBA 9s
License plate light *	4 W	BA 9 s
Door warning lights	3 W	W 2.1x9.5d
Interior light	10 W	SV8.5
Reading lights, front	5 W	W 2.1x9.5d
Trunk light	10 W	SV8.5
Glove box light	2 W	BA9 s
Instrument lighting	3 W	W 2.1x9.5d
Ashtray rear	1.2 W	Volvo P/N966326
Seat belt lock	1.2 W	Volvo P/N966326
Warning lights/
Indicator lights	1.2 W	Volvo P/N966326

* Wagons

Vehicle Loading

The tires on your Volvo should perform to specifications at all normal loads when inflated as recommended on the tire information label. The label is located on the rear-facing edge of the right-front door. This label lists both tire and vehicle design limits. Do not load your car beyond the load limits indicated.

Capacities

Fuel tank (approx.) 19.8 US gal.
75 liters
Cooling System 10 US qts.
(9.5 liters)
Engine 4.0 US qts. *
at oil change 3.85 liters
Automatic transmission 7.9 US qts.
7.5 liters
Rear axle 1.7 US qts.
1.6 liters
Power steering gear 0.7 US qts.
0.7 liter
* Turbo: If oil cooler is drained, add 0.7 US qts (0.6 liter)

All specifications are subject to change without notice.

Service Manuals for your Volvo are available for purchase. These are the same manuals used by competent Volvo technicians.

Major sections within the Service Manual System include: 0-General Information; 1- Lubrication and Service; 2- Engine; 3- Electrical System; 4- Power Transmission; 5-Brakes; 6- Suspension and Steering; 7- Springs Shock Absorbers and Wheels; 8- Body and Interior.

A Literature Catalog Request Card was placed in the car prior to delivery from the retailer to you. Complete ordering information is provided

All specifications are subject to change without notice.

Volvo supports Voluntary Mechanic Certification by the A.S.E. Certified mechanics have demonstrated a high degree of competence in specific areas. Besides passing exams each mechanic must also have worked in the field for two or more years before a certificate is issued. These professional mechanics are fully able to analyze vehicle problems and perform the necessary service procedures to keep your Volvo at peak operating condition.

Note that the above pertains to USA only.

Your new Volvo comes with a four year road assistance program named ON-CALL. Additional information, features, and benefits are described in a separate information package in your glove compartment.

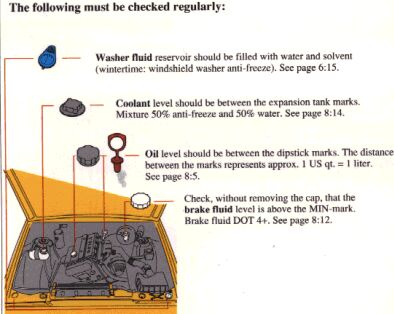

UNLEADED FUEL ONLY
VOLVO

Octane rating, see p. 4:2.

Tire pressure, see label located on rear edge of right front door.
