1995 Volvo 940

Electrically-operated sun roof

The switch for operating the sun roof is located on the instrument panel. The starting (ignition) key must first be turned to the drive position.

To slide open the sun roof : press the lower section of the switch.

To close the sun-roof : press the upper section of the switch until the sun roof has closed completely .

To open the rear edge of the sun roof (ventilation position) : press the upper section of the switch. Press the lower section of the switch to return the sun roof to the closed position.

Sun shade

The sun roof also features a manually-operated sliding sun visor. The sun visor automatically slides back slightly when the sun roof is opened to the ventilation position.
CAUTION: Do not close the sun visor when the sun roof is in the ventilation position as this could damage the mechanism.

WARNING! The sun roof must never be obstructed in any way when in operation.

NOTE:

The electrically-operated sun roof has an overload protecting circuit breaker which is activated when an object blocks the sun roof. Should this occur, remove the object and wait 20 seconds for the circuit breaker to reset. The sun roof should then function normally. In case of a sun roof malfunction, see "Service diagnosis", page 6:18.

To help alleviate "rumbling" wind noise when the sun roof is open, adjust the position slightly (open/close) or open a rear window slightly.

pg. 2:7 Child safety locks, Trunk lid (sedan)

Child safety locks

The buttons are located on the rear door jams.
A The door lock functions normally.
B The door cannot be opened from the inside.
Normal operation from outside.
WARNING!
Remember, in the event of an accident, the rear seat passengers cannot open the doors from the inside with the buttons in position B .

Trunk lid

The trunk lock is incorporated in the central locking system. This means that you can either lock or unlock the trunk by means of either of the front doors.
You can also operate the trunk lock directly with the master key even if the vehicle is centrally locked.

Unlocking Locking

Withdraw key in vertical position.
The trunk lock can also be disconnected from the central locking system by turning the key counterclockwise as shown below:

Withdraw key in horizontal position.

The trunk is now always locked.
This option can be used if for example, you lend your car to somebody. If you give only the service key to the driver it will not be possible to open the trunk.
To reconnect the lock to the central locking system:
Withdraw key in vertical position

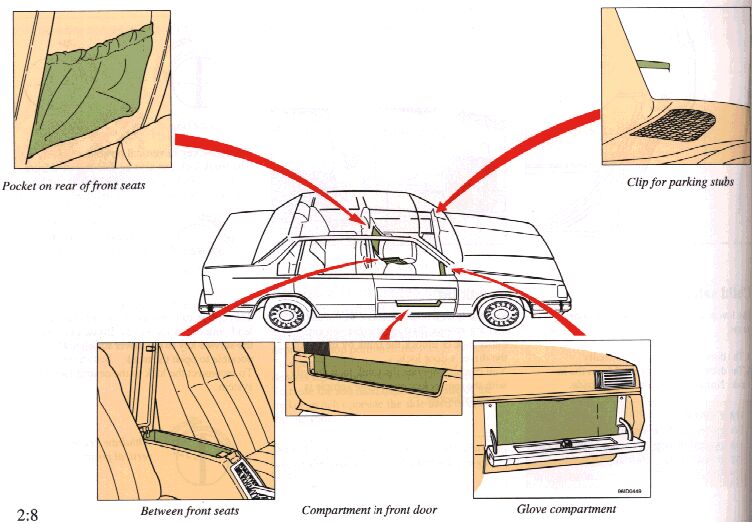

pg. 2:8 Storage spaces

WARNING!
Packages on the rear window shelf can obscure vision and may become dangerous projectiles in the event of a sudden stop or an accident.

pg. 2:9 Interior light, Hood

Interior light
1 Lights always on.
2 Lights always off.
3 Light is on when either of the front or the rear doors are opened.

To open the hood

Pull the release handle. It is located under the left side of the dash.

Lift the hood slightly, insert a hand under the center line of the hood and depress the safety catch handle. Open the hood.
WARNING!
Check that the hood locks properly when closed.

The normal opening angle for the hood approximately 55°. By turning the catches on the hinges as illustrated, the hood can be opened to the vertical position. The catches will return to their normal position when the hood is closed.

Ensure adequate clearance in low-roof garages to avoid damaging the hood.

pg. 2:10 Trunk, Long load storage (sedan)

Tool bag
Jack
The jack must be completely folded for it to fit in the bracket.
Secure the jack with the strap

NOTE: See pages 6:3-6:4 for information on how the jack should be used.

Trunk light

A Light always off.
B Light is on when trunk lid is opened.

Long load storage

In the panel behind the rear seat is a door which makes it possible to carry long loads such as skis, etc.
WARNING!
Cover sharp edges on load to help prevent injury to occupants. Secure load to help prevent shifting during sudden stops.

Please note that the flap in the rear seat is only intended for light loads such as skis, carpets, etc.
Max. length of load 61/2 ft =2 m.
Max. weight of load 33 lbs = 15 kg.
WARNING!
Always turn engine off and apply parking brake when loading/unloading the vehicle. Place transmission selector in P (PARK) position to help prevent inadvertent movement of selector.
