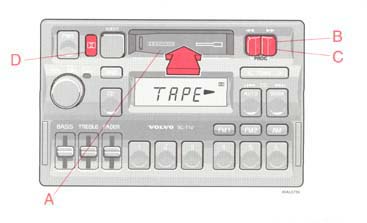

A - Cassette slot

The cassette is inserted with the open side to the right (side 1 or A of the cassette upwards). When the cassette is inserted, the radio is disengaged and the cassette will start to play automatically. "TAPE " or "TAPE " is displayed to indicate which side of the tape is being played. When one side of the tape is being played. When one side of the tape has been played the unit will automatically play the other side (auto-reverse). The cassette can be inserted or ejected even when the unit is switched off.

B - Reversing the tape (PROG)

Press the two buttons to play the other side of the tape.
The side of the tape being played will be displayed.

C - Fast winding

The tape is advanced with " " and rewound with " ".
Fast winding can be stopped by pressing the opposite button.

D - Dolby B button

Press this button when you use tapes recorded with the Dolby B noise reduction system. The Dolby Symbol will be indicated in the display.

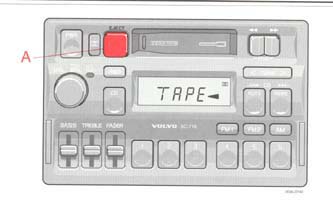

A - Cassette eject

If the button is pressed the tape will stop and the cassette will be ejected. The radio will be automatically engaged. The radio or CD will engage automatically (depending on which mode was activated before the tape was played).

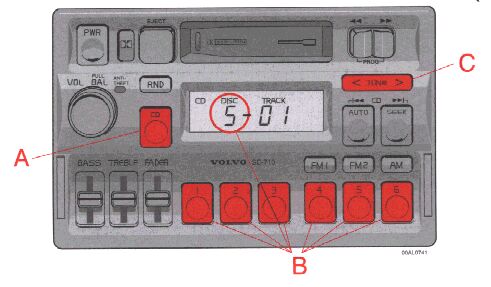

A - CD mode selector

Press "CD" to actuate the CD mode. The disc/track last listened to will continue to play. If the CD-changer cartridge * is empty, "---- will be displayed.
If a selected disc does not exist, the disc number and "5---" will be displayed and the next disc will be automatically selected.

* The functions pertaining to the CD-changer are only applicable if the unit has been connected to the Volvo CD-changer which is sold separately as an accessory, or on certain models, standard on the car.

B - Disc number selector

Depress one of the preset buttons (1-6) to select the disc number desired. The selected disc number and track number will be displayed.

C - Music search

Press the TUNE button to search within a track. While the button is depressed the playing time for this track will be displayed.

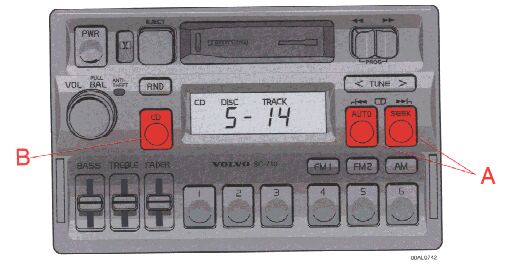

A - Changing the selected track number

Press CD (SEEK) button to select the next track.
Press the CD (AUTO) button to select the previous track.
The chosen disc number and track number will be displayed.

B - Playing-time display

When the CD button is pressed the playing time for the current track is displayed for 5 seconds.

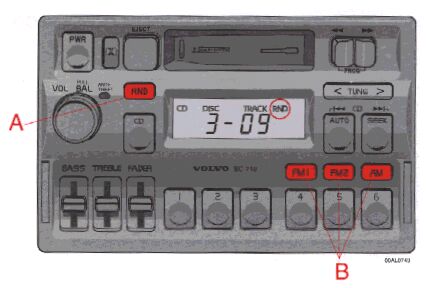

A - Random choice

Press "RND" to actuate the random mode. From a disc chosen at random, 4 tracks will be played (also chosen at random).
A new disc will then be played in the same way. "RND" will be displayed when this function is engaged.

B - To re-enter the Radio mode

To re-enter Radio mode, push one of the waveband selector buttons.
