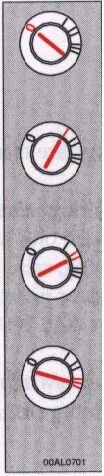

Headlights and parking lights

All lights off *
Parking lights on **
Headlights and parking lights are on if starting (ignition) switch is in position I or II.

If the headlight switch is in position all lights will go out when starting switch is switched off.
With the headlight switch in position the parking lights will stay on.
The high beams can only be switched on if the headlight switch is in position .
Switch from high to low beams, and vice versa, by moving the turn signal switch lever on the left side of the steering column towards the steering wheel.

* Models equipped with daytime running lights: The low beams, tail lights, parking lights and license plate lights will come on automatically when the engine is started.

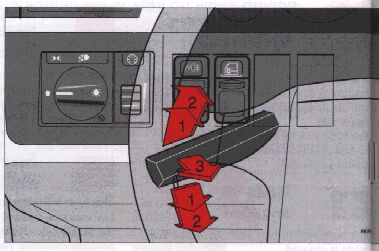

Turn signals

1 Lane change position : In maneuvers such as lane changing, the driver can flash the turn signals by moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral position when released.
2 Signal lever engaged for normal turns
3 High beam/low beam switch (headlights on)
Move the lever towards the steering wheel and release it.
Headlight flasher (headlights off)
Move the lever towards the steering wheel.
The headlight high beam will be on until the lever is released.

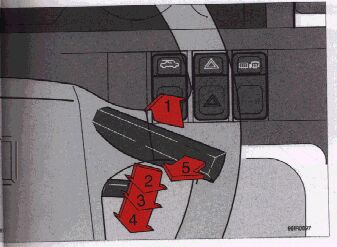

Wiper/washer

1 Intermittent wiper.
With switch in this position, the wipers will sweep approximately every seventh second.
2 "Single sweep" position.
Switch returns automatically when released
3 Wipers, low speed.
4 Wipers, high speed
5 Windshield wiper/washer.
The wiper will make 2-3 complete sweeps after lever is released.

Starting (ignition) switch/steering wheel lock

The steering wheel lock might be under tension when the car is parked. Turn the steering wheel slightly to free the ignition key. In order to reduce car theft, make sure the steering wheel lock is engaged before leaving the car.
A chime will sound if the starting key is left in the ignition lock and the front door on the driver's side is opened.

I Intermediate position:
Certain accessories, etc. on.
II Drive position:
key position when engine is running.
III Starting position:
release the key when the engine start. The key returns automatically to the Drive position.

* The gear selector must be in the (P)ark position before the key can be removed from the ignition switch.

Front and rear foglights

The switch has two settings:
1 Front foglights ON.
2 Front and rear foglights ON.
When both front and rear foglights are turned on both indicators will light.
The rear foglight is considerably brighter than the normal tail light and should be used only when the atmospheric conditions, such as fog, rain, snow, smoke or dust reduce the daytime or nighttime visibility of other vehicles to less than 500 ft (150 meters).
The lowbeam headlights must be switched on. Note that local regulations governing the use of these lights may vary.

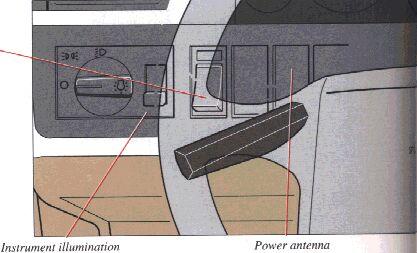

Instrument illumination

To increase the brightness, rotate the switch up.
To decrease the brightness, rotate the switch down.

Power antenna (sedans)

The power antenna switch can be used to retract the antenna when the audio system is turned on. This will permit operation of the cassette drive with the antenna in the down position.

The antenna mast should be cleaned and lubricated every 10,000 miles (16,000 km). See page 1:32

Steering wheel adjustment

Electrically operated sun roof (certain models)

The sun roof can be operated in two ways; as a conventional sliding roof; or the rear edge can be raised to provide increased ventilation. On models equipped with the power glass sun roof, a manually operated sun shade is also provided.
See page 2:16 for operating instructions.

Hazard warning flasher

The four-way flasher should be used to indicate that the vehicle has become a traffic hazard.

Tailgate window wiper/washer (wagon)

The tailgate window wiper/washer is operated by a switch at the end of the wiper level.
1. The wiper operates continuously.
2. Intermittent position: the wiper strokes approximately every 10 seconds.
3. Tailgate washer (note that the wiper also operates when this button is depressed): after the button is released the wiper strokes 2-3 additional times before stopping.
The electrical circuit is protected by fuse 19, located in the central electrical unit. See the section entitled "Fuses".

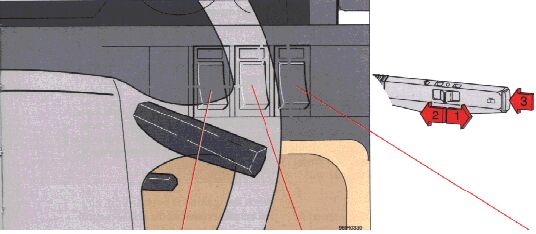

Heated rear window, heated side-door mirrors (certain models)

Depress the switch to start heating of rear window and side mirrors. Both orange control lights in the switch will illuminate. A timer switches off the side mirror heating after approx. 6 minutes and the rear window demister after 12 minutes. The control lights go out correspondingly.

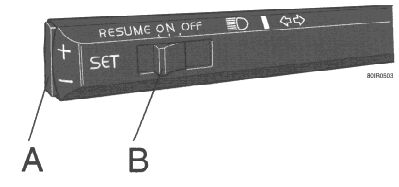

Cruise control

The cruise control switches are located on the turn signal switch lever.
To engage and set desired speed:
1. Set switch (B) to ON.
2. Accelerate to desired cruise speed.

3. Press the + or - area of the SET button (A) to set the desired speed.

Braking
This will automatically disengage the cruise control. Previously selected cruise control speed is retained in the memory and by momentarily setting the switch to RESUME position, that speed will be re-engaged.

If the cruise control is already engaged, the cruising speed can be increased or decreased by depressing the SET button (A) towards either + or -. One short press on the button corresponds to a speed change of approx. 1 mph (1.6 km/h). When the button is released, the vehicle will maintain the current speed.

If actual speed falls below 70% of set speed or if the wheels spin or lock, the cruise control will disengage automatically.

Acceleration
Momentary acceleration, such as for passing, does not interrupt cruise control operation. The previously selected speed will be maintained without having to set the switch to RESUME.

To disengage the cruise control system : set switch (B) to OFF, depress the brake pedal or move the gear selector to position N. Switching off the starting (ignition) switch will automatically disengage the cruise control system.

When the ignition is switched off, any information stored in the cruise control memory will be erased.
