| pg. 2:6 Interior light, sun roof |
Interior light
1 Light always on.
2 Light always off
3 Light is on when either of the front or rear doors are opened.
Electrically-operated sun roof (certain models)
To open the sun roof as a sliding roof,
depress the top portion of the rocker switch.
To raise the rear edge of the sun roof, depress the bottom portion of the switch.
To close the sun roof, depress the side of the rocker switch opposite the side used to open the sun roof.
|
NOTE: In case of a sun roof malfunction,
see "Emergency sun roof operation", page 6:18. |
| pg. 2:7 Child safety locks, Trunk lid (sedan) |
Child safety locks
The buttons are located on the rear door jambs.
A The door lock functions normally.
B The door cannot be opened from the inside.
Normal operation from outside.
|
WARNING!
Remember, in the event of an accident, the rear seat passengers cannot open the doors from the inside with the buttons in position B . |
Trunk lid
The trunk lock is incorporated in the central locking system. This means that you can either lock or unlock the trunk by means of driver's door lock.
You can also operate the trunk lock directly with the master key even if the vehicle is centrally locked.
Withdraw key in vertical position.
The trunk lock can also be disconnected from the central locking system by turning the key counterclockwise as shown below:
Withdraw key in horizontal position.
The trunk is now always locked.
This option can be used if for example, you lend your car to somebody. If you give only the service key to the driver it will not be possible to open the trunk.
To reconnect the lock to the central locking system:
Withdraw key in vertical position

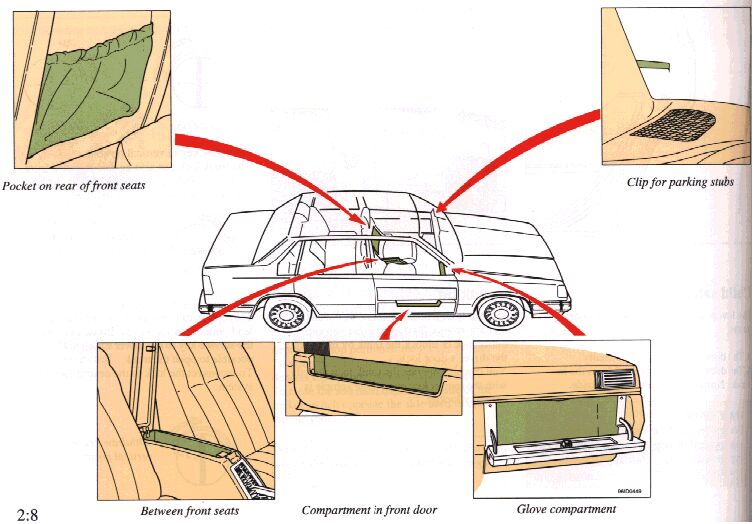

| pg. 2:8 Storage spaces |
|
WARNING!
Packages on the rear window shelf can obscure vision and may become dangerous projectiles in the event of a sudden stop or an accident. |
| pg. 2:9 Hood |
Pull the release handle. It is located under the left side of the dash.
Lift the hood slightly, insert a hand under the center line of the hood and depress the safety catch handle. Open the hood.
|
WARNING!
Check that the hood locks properly when closed. |
| pg. 2:10 Trunk, Long load storage (sedan) |
Tool bag
Jack
The jack must be completely forlded for it to fit in the bracket.
Secure the jack with the strap
| NOTE: See pages 6:3-6:4 for information on how the jack should be used. |
Trunk light
A Light always off.
B Light is on when trunk lid is opened.
Long load storage
In the panel behind the rear seat is a door which makes it possible to carry long loads such as skis, etc.
|
WARNING!
Cover sharp edges on load to help prevent injury to occupants. Secure load to help prevent shifting during sudden stops. |
Please note that the flap in the rear seat is only intended for light loads such as skis, carpets, etc.
Max. length of load 61/2 ft =2 m.
Max. weight of load 33 lbs = 15 kg.
|
WARNING!
Always turn engine off and apply parking brake when loading/unloading the vehicle. Place transmission selector in P (PARK) position to help prevent inadvertent movement of selector. |
