Headlights and parking lights

All lights off *
Parking lights on **
Headlights and parking lights are on if starting (ignition) switch is in position I or II.

If the headlight switch is in position all lights will go out when starting switch is switched off.
With the headlight switch in position the parking lights will stay on (headlights off) with the daytime running light switch (A) in position .
The high beams can only be switched on if the headlight switch is in position .
Switch from high to low beams, and vice versa, by moving the turn signal switch lever on the left side of the steering column towards the steering wheel.
* Models equipped with daytime running lights:
The low beams will come on automatically when the engine is switched.

Turn signals

1 Lane change position : In maneuvers such as lane changing, the driver can flash the turn signals by moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral position when released.
2 Signal lever engaged for normal turns

3 High beam/low beam switch (headlights on)
Move the lever towards the steering wheel and release it.
3 Headlight flasher (headlights off)
Move the lever towards the steering wheel.
The headlight high beam will be on until the lever is released.

Hazard warning flasher

The four-way flasher should be used to indicate that the vehicle has become a traffic hazard.

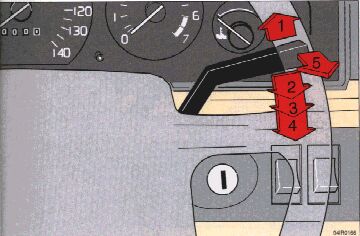

Wipers/washer

1 Intermittent wiper.
With switch in this position, the wipers will sweep approximately every seventh second.
2 "Single sweep" position.
Switch returns automatically when released
3 Wipers, low speed.
4 Wipers, high speed
5 Windshield wiper/washer, headlight wiper/washer (certain models)
The wiper will make 2-3 complete sweeps across the windshield and headlights after lever is released.

Starting (ignition) switch/steering wheel lock

The steering wheel lock might be under tension when the car is parked. Turn the steering wheel slightly to free the ignition key. In order to reduce car theft, make sure the steering wheel lock is engaged before leaving the car.
A chime will sound if the starting key is left in the ignition lock and the front door on the driver's side is opened.

0 Locked position: remove the key to lock the steering wheel. WARNING: Never turn the key to position 0 while driving or when the car is being towed. I Intermediate position: Certain accessories etc. on. II Drive position: key position when engine is running. III Starting position: release the key when the engine start. The key returns automatically to the Drive position.

* The gear selector must be in the (P)ark position before the key can be removed from the ignition switch.

Rear fog light only (certain models)

On models equipped with a rear foglight only, the switch has no indicator lamp. The rear foglight is considerably brighter than the normal tail lights and should be used only when the atmospheric conditions, such as fog, rain, snow, smoke or dust reduce the daytime or nighttime visibility of other vehicles to less than 500 ft (150 meters). The lowbeam headlights must be switched on. Note that the local regulations governing the use of these lights may vary.

The switch has two settings:
1 Front foglights ON.
2 Front and rear foglights ON.
When both front and rear foglights are turned on both indicators will light.
The rear foglight is considerably brighter than the normal tail light and should be used only when the atmospheric conditions, such as fog, rain, snow, smoke or dust reduce the daytime or nighttime visibility of other vehicles to less than 500 ft (150 meters).
The lowbeam headlights must be switched on. Note that local regulations governing the use of these lights may vary.

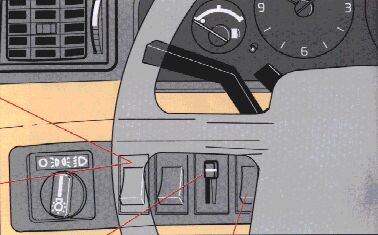

Instrument illumination

To increase the brightness, move the slide switch up.
To decrease the brightness, move the slide switch down.

Power antenna

The power antenna switch can be used to retract the antenna when the audio system is turned on. This will permit operation of the cassette drive with the antenna in the down position.

The antenna mast should be cleaned and lubricated every 10,000 miles (16,000 km). See page 1:43

Rear window demister

To operate, depress the switch. The indicator lamp in the switch will come on.

Electrically-operated sun roof

To open the sun roof as a sliding roof, depress the top portion of the rocker switch.
To raise the rear edge of the sun roof, depress the bottom portion of the switch.
To close the sun roof, depress the side of the rocker switch opposite the side used to open the sun roof.

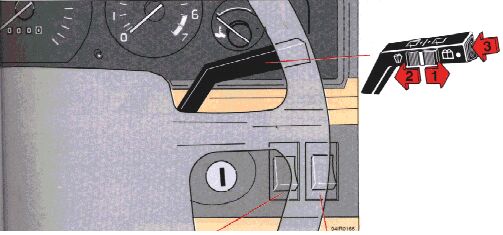

Tailgate window wiper/washer (wagon)

The tailgate window wiper/washer is operated by a switch at the end of the wiper level.
1. The wiper operates continuously.
2. Intermittent position: the wiper strokes approximately every 10 seconds.
3. Tailgate washer.
After the button is released the wiper strokes 2-3 additional times before stopping.
The electrical circuit is protected by fuse 14, located in the central electrical unit. See the section entitled "Fuses".

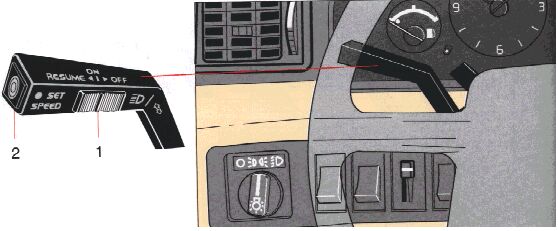

Cruise control

The cruise control switches are located on the turn signal switch lever.
To engage and set desired speed:
· Set switch (1) to ON.
· Accelerate to desired cruise speed.
· Depress SET SPEED switch (2).

Operating brake pedal
This will automatically disengage the cruise control. Previously selected cruise control speed is retained in the memory and by momentarily setting the switch to RESUME position, that speed will be re-engaged.

Acceleration

If the cruise control is already engaged, the cruising speed can be increased or decreased by depressing the SET SPEED button (2). The vehicle will then maintain the current speed.
Depressing the SET SPEED button briefly will result in a 1 mph (1.6 km/h) increase in the set speed.

Momentary acceleration, such as for passing, does not interrupt cruise control operation. The previously selected speed will be maintained without having to set switch to RESUME.

To disengage the cruise control system : set switch (1) to position OFF, or depress the brake pedal. Switching off the starting (ignition) switch or moving the gear selector to position N will automatically disengage the cruise control system.
